Quad-Stack Features

Quad-Stack Features

• Brush dampening
• Motorized compensator (shafted models only)
• Positive clutch engagement on unit
• Cascading oil lubrication on all drive gears with flow control
• Drop down ink fountain assembly
• Rubber covered ink & dampener rollers
• Compressible blankets with bars attached
• Solid stainless steel plate & blanket cylinders (forgings)
• Safety guards totally covering ink & dampening rollers
• Form rollers, air operated
• Impression, air operated
• Pneumatic web tension (roll under unit only)
• Motor driven ink fountain rollers (variable speed)
• Motor driven dampener pan rollers (variable speed)
• Motor driven spiral brush dampener (constant speed)
• One-way (non-contaminating) water system
• Bearers on blanket cylinders
• Running sidelay register control - all plates
• Running circumferential register control - all plates
• Running plate skewing register control - all plates
• Air circulation system between decks to control temperature & moisture levels in uncontrolled climatic conditions
• Zone dampening

Options

Options

• Mechanical spare parts kits
• Spare electrical controller module
• Narrow gap blanket lockups, allows for .5" extra print length
• Double ended plate bender
• Pin register system
• Motorized ink keys with control system
• 40 Hp AC Vector drive & motor
• Touch Screen control
• UV Curing for printing on coated stocks

More Features

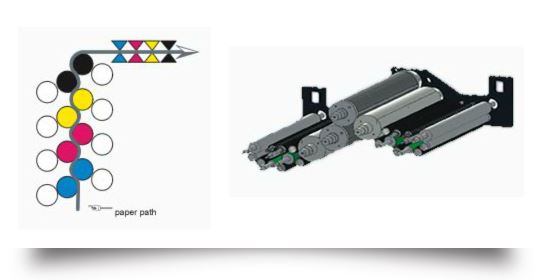

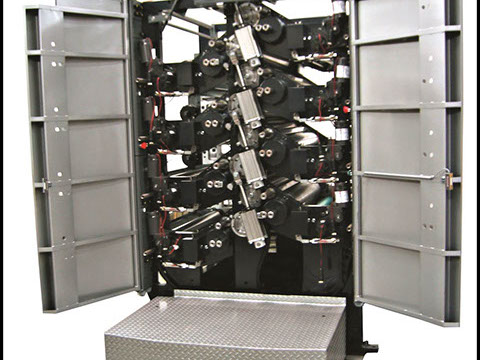

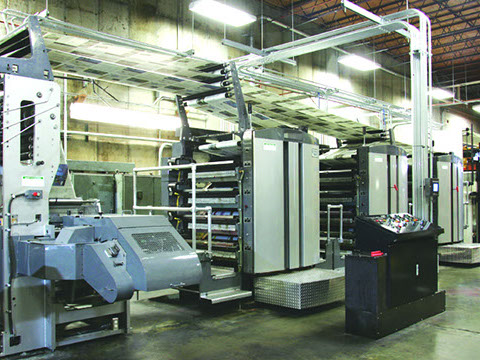

The basic component of the QUAD-STACK is the Universal Printing Module (UPM), a compact web-fed offset printing unit that prints a single color on both sides of the web of paper. The UPM contains four solid stainless steel printing cylinders: two plate & two blanket cylinders.

The Universal Printing Modules are shaped so they can be placed one on top of the other with each added module enabling the printing of one additional color on each side of the web. These "stackable" modules are either mounted above a reel stand or a base frame.
  • Quad stack slideshow20120522 15400 9saer8 0 960x435

Quad Stack Printing Press - Coro Nuevo Dia

This is a video showing our latest Quad-Stack printing press installation in live production.

Quad Stack Printing Press - Coro Nuevo Dia

Quad-Stack Test Run.mp4

This video shows a Quad-Stack printing press test run. You see art and engineering combining the first time the start button is pushed.
Quad-Stack Test Run.mp4

Quad-Stack Press Frame.wmv

This video shows the process of cutting the side frames for a Quad-Stack printing press.
Quad-Stack Press Frame.wmv

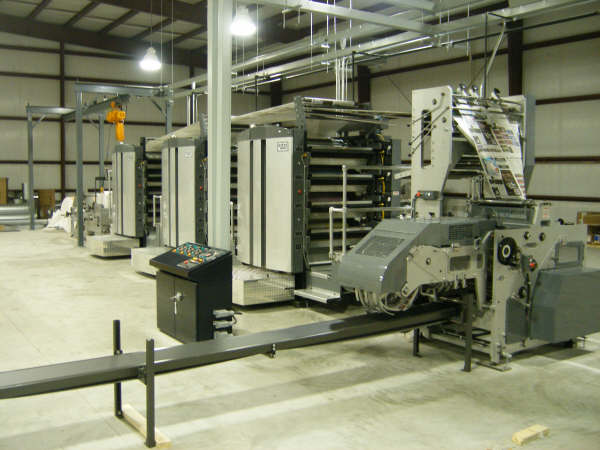

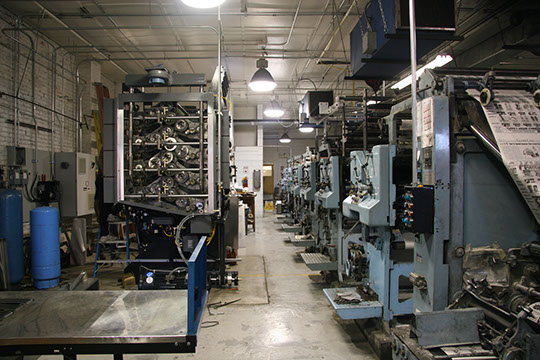

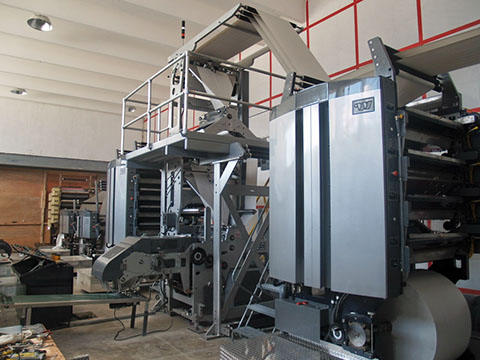

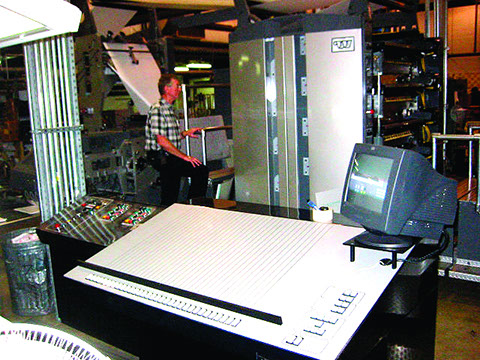

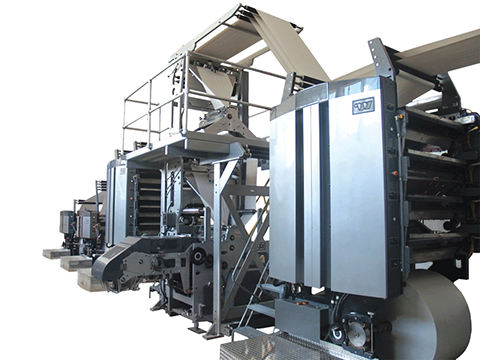

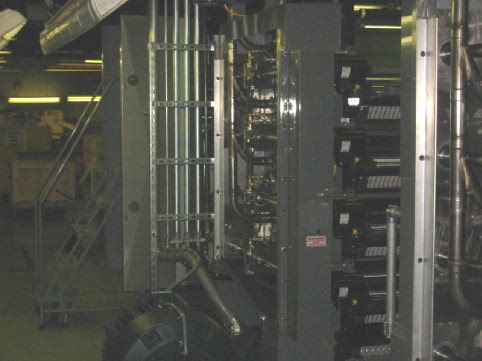

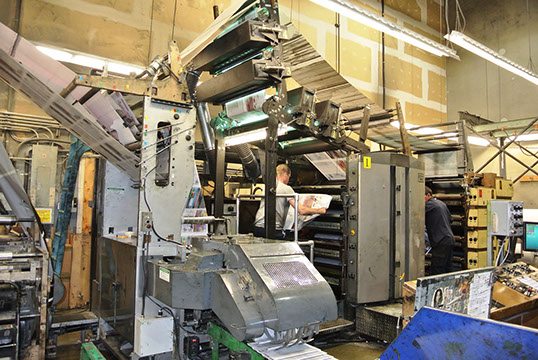

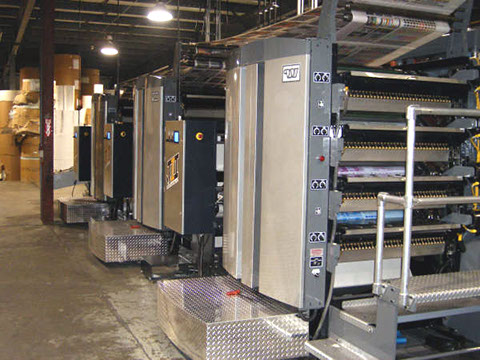

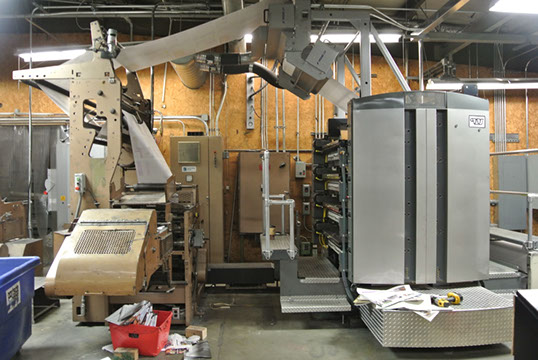

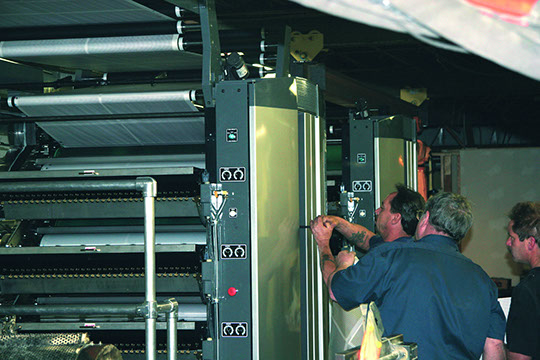

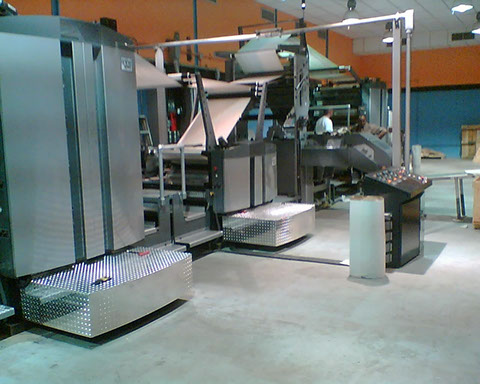

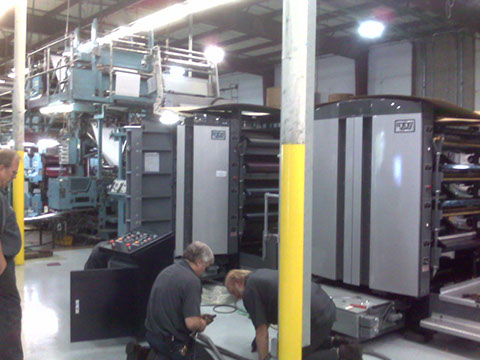

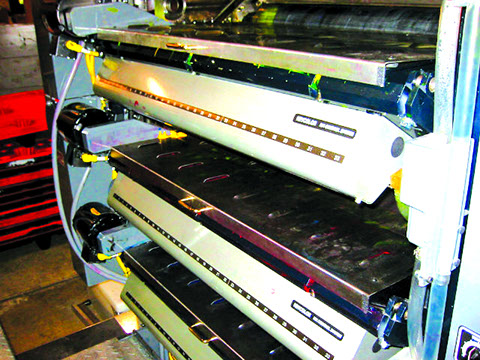

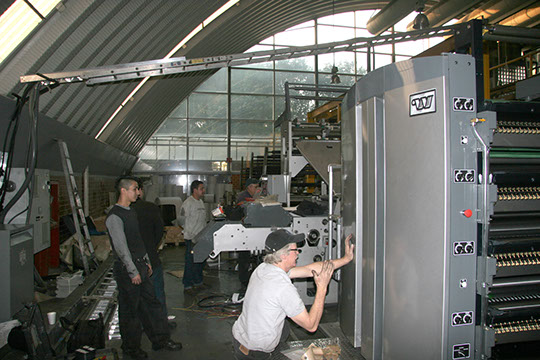

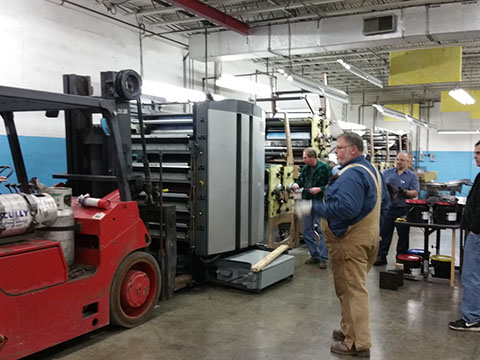

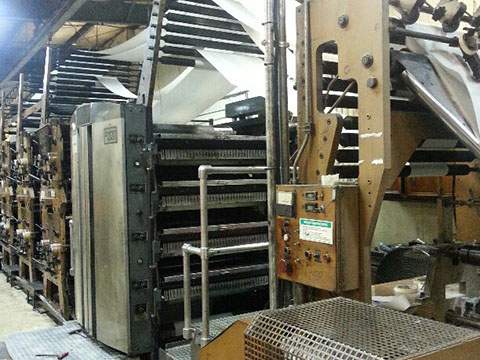

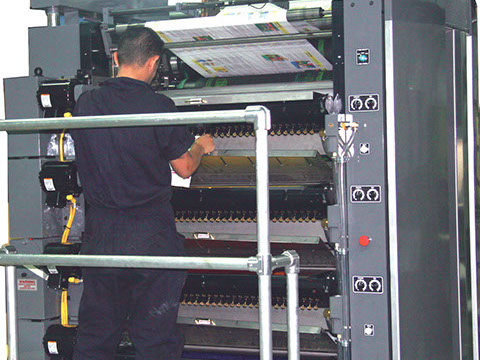

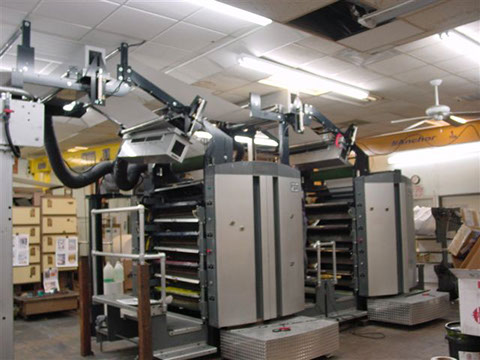

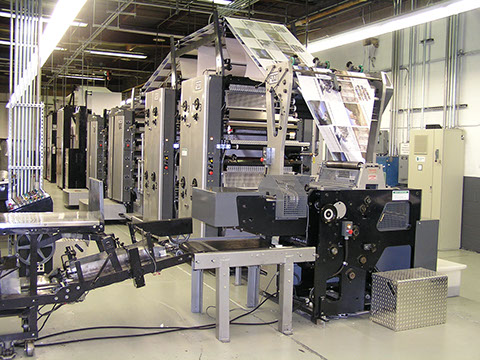

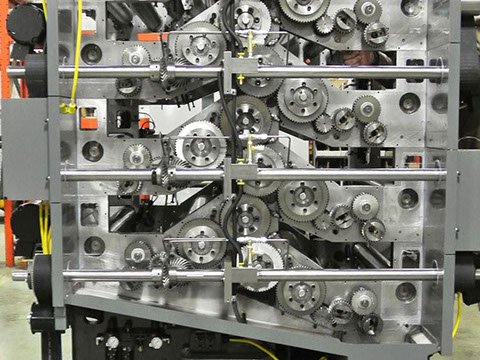

Quad-Stack Image Gallery
